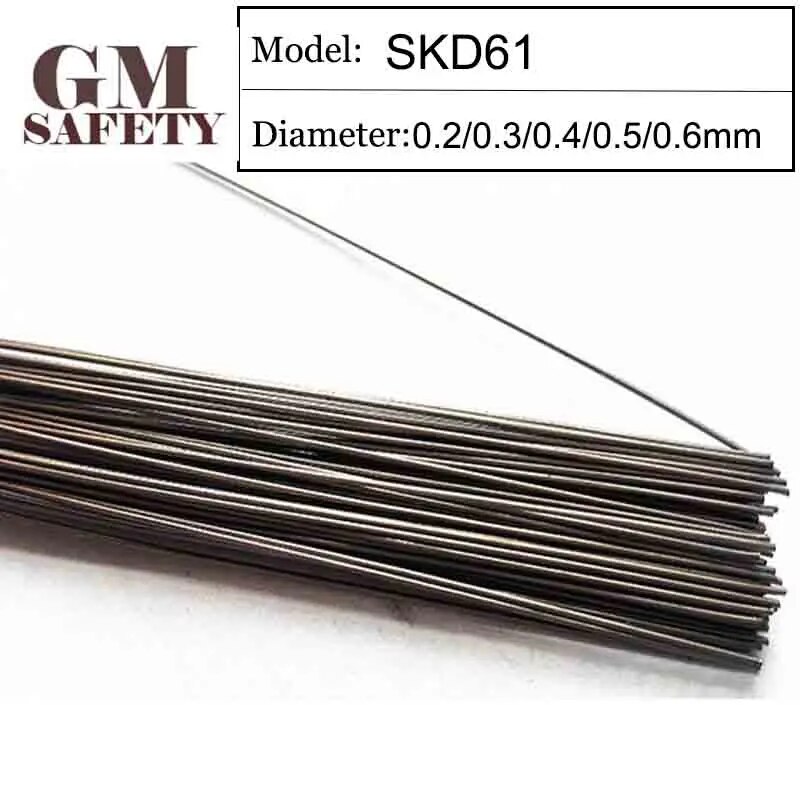

GM Welding Wire Material SKD61 of 0.2/0.3/0.4/0.5/0.6mm Hot Die Mold Laser Welding Filler 200pcs /1 Tube GMSKD61

$19.80
$26.40
Diameter:  0.2mm
Quantity

Description

Brand Name: GM SAFETY

Origin: Mainland China

Model Number: SKD61

Weight: 0.5KG

Application: Laser welding

Diameter: 0.2/0.3/0.4/0.5/0.6mm

Material: Mould Steel

Flux Content: 0

Product Details

Model:SKD61

SKD61 is a high chromium alloy tool steel with high hardness and wear resistance after heat treatment and hardenability. It has good dimensional stability and hot hardness. it is suitable for producing high precision long life hot work die mould.

Diameter:0.2/0.3/0.4/0.5/0.6mm

Quantity:500mm *200pcs(100meters in total)

HRC: 42-45

Features:SKD61 is a high chromium alloy tool steel with high hardness and wear resistance after heat treatment and hardenability. It has good dimensional stability and hot hardness. it is suitable for producing high precision long life hot work die mould.

Chemical Composition:

Composition C Si Mn P S Cr Mo V
Min% 0.35 0.8 0.25 - - 4.8 1 0.8
Max% 0.42 1.2 0.5 0.03 0.02 5.5 1.5 1.15

Table of approximate grades

GB JIS ASTM ISO DIN EN/DIN W-Nr. SS
4Cr5MoSiV SKD 61 H13 40CrMoV 5 X40CrMoV 5-1 1.2344 8407
